PMMA SIDE GLOW FIBER

TWISTED MULTI CORES SIDE GLOW CABLE

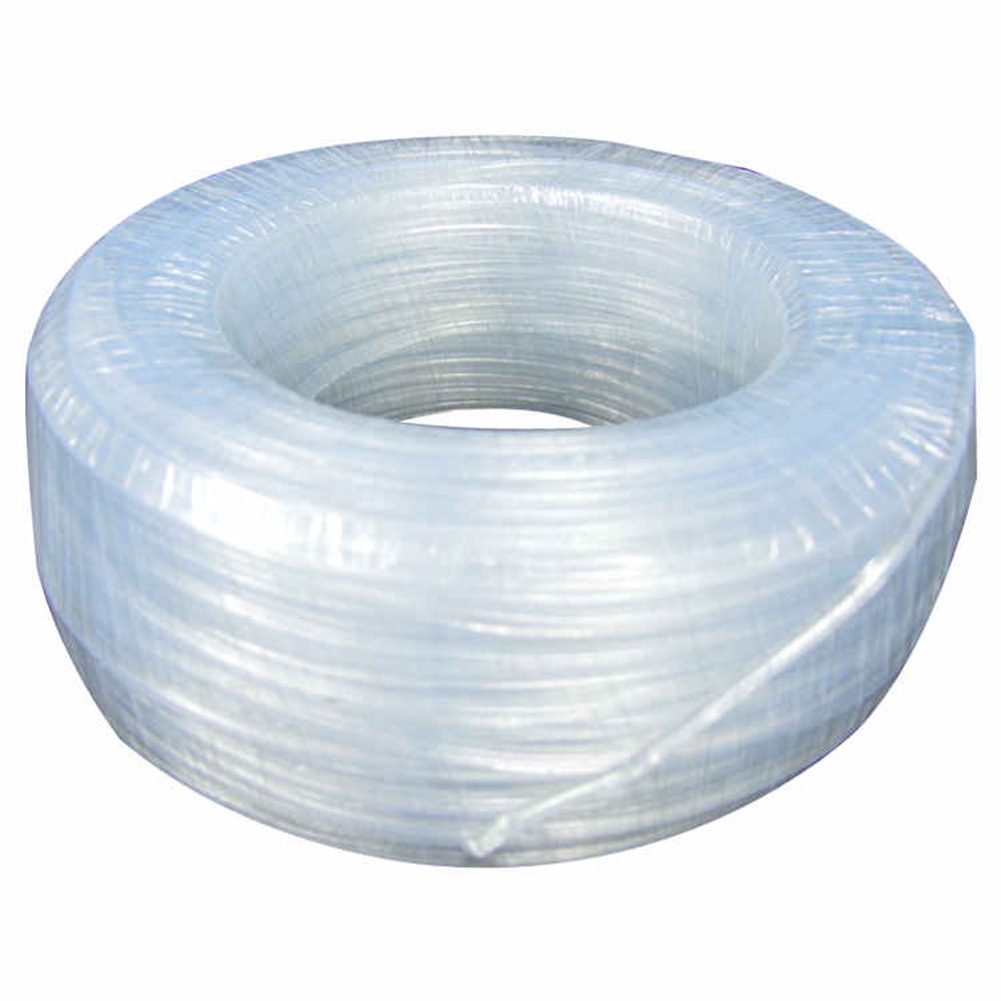

Name:TWISTED MULTI CORES SIDE GLOW CABLE

Details



DESCRIPTION

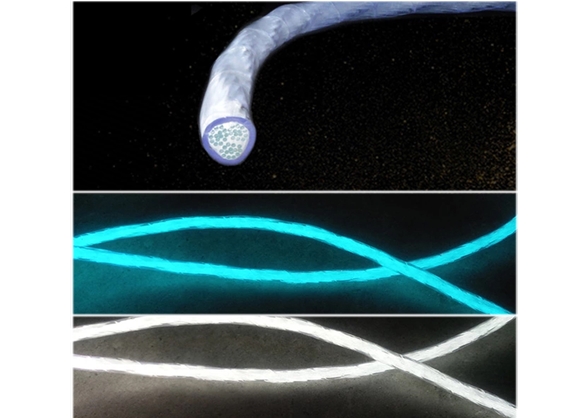

  Twisted Multi Cores Side Glow Cable is a new and green lighting product, which is a safe alternative to neon. By using with various light sources such as LED light source, Metal Halide light source, Halogen light source etc.,

  Fiber optic lighting has following advantages:

  1. Color changing, which is virtually unbreakable and energy efficient;
  2. Suitable for interior and exterior applications. It is UV protected, which has an algaecide and fungicide treated exterior jacket for maximum durability against the elements.
  3. Side Glow fiber optic cable is strong enough for amusement park rides, extreme cold weather as well as underwater applications. With no heat or electricity in the cable, it is safer compared with typical lighting design restrictions.

SPECIFICATION

   Jacket material: Transparent, anti-ultraviolet PVC ;

  Allowable bend radius: 10 times larger than fiber core diameter;

  Using temperature range of the cable:  -40 ~ +70 ℃;

Model

Core strands

fiber/cable diameter

(mm)

Fiber material

TFCV-750-14

14

0.75/6±1



PMMA

/ Fluororesin

TFCV-750-42

42

0.75/10±1

TFCV-750-84

84

0.75/14±2 (filler)

TFCV-750-126

126

0.75/18±2 (filler)

TFCV2-750-14

14

0.75/6±1

TFCV2-750-42

42

0.75/10±1

TFCV2-750-84

84

0.75/14±2 (filler)

TFCV2-750-126

126

0.75/18±2 (filler)

TFCV2-1000-14 14 1.0/6±1
TFCV2-1000-42 42 1.0/12±1
TFCV2-1000-84 84 1.0/18±2 (filler)

APPLICATION

  Interior lighting decoration of KTV , pubs , coffee houses , hotels and restaurants;

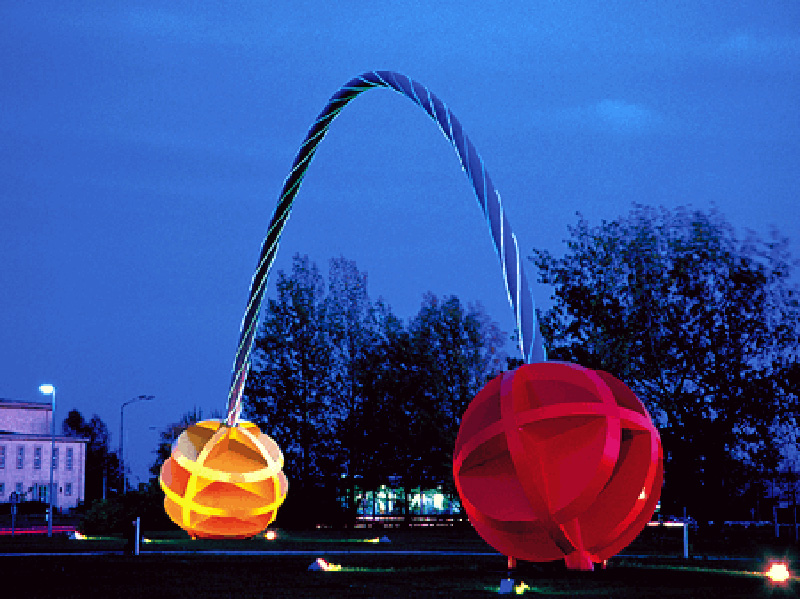

  Artistic design of 2D and 3D figures;

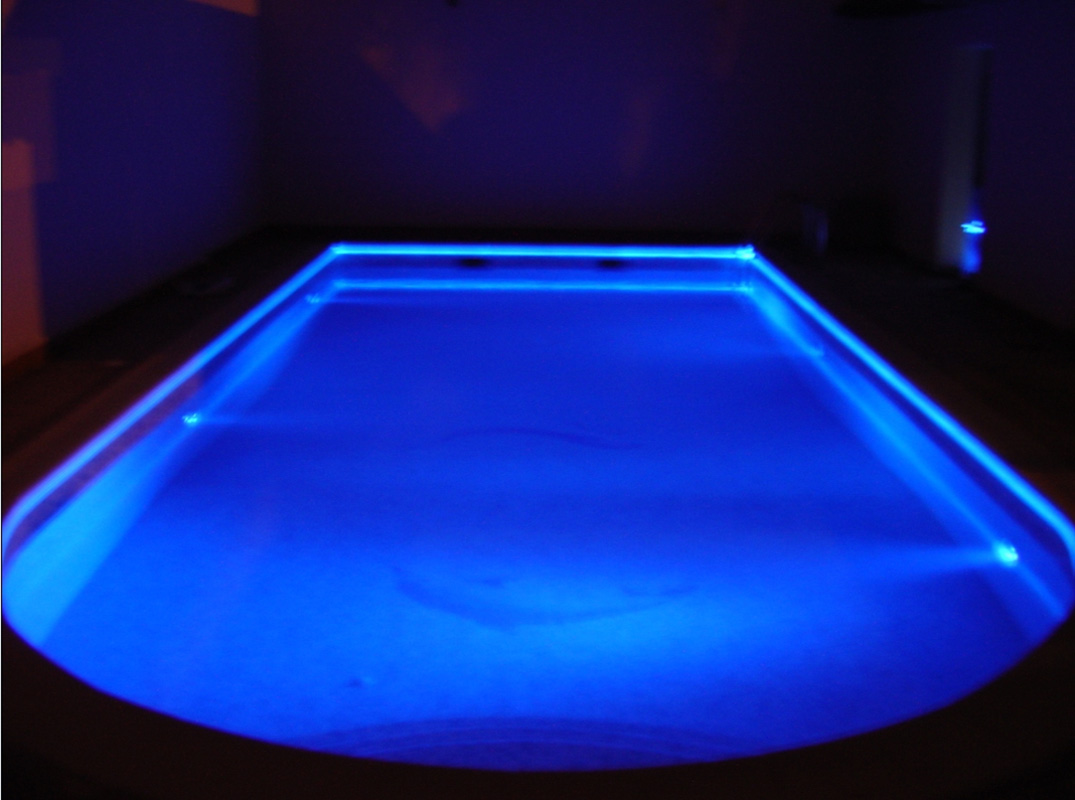

  Lighting in swimming pools and underwater facilities;

  Large-size backdrop of lighting waterfall.
